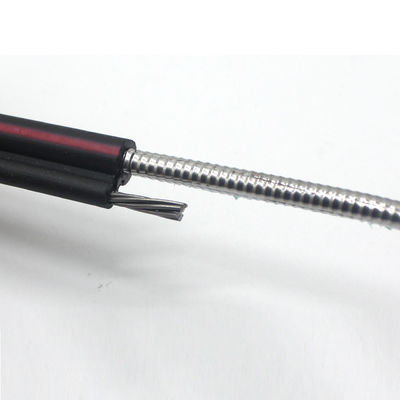

GYC8A/GYTC8Y Aerial Armored Self-supported Mini Figure 8 Fiber Optic Cable 8 Core 12 24 48 Core
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| Product name | GYTC8S fiber optic cable | Fiber count | 48cores(Support 2-144core) |
|---|---|---|---|
| Fiber Type | Singlemode 9/125 | Overall Diameter | 11.4mm~13.10mm |
| Outer Jacket | PE | Sample Status | In stock |
| Length | 1-5km per wooden drum | Cable Color | Black |
| برجسته کردن | GYTC8Y Aerial Armored Fiber Optic Cable,24 Core GYC8A Fiber Optic Cable,Self-supported GYC8A Fiber Optic Cable,24 Core GYC8A Fiber Optic Cable,Self-supported GYC8A Fiber Optic Cable |
||
توضیحات محصول
48 Core Overhead Self Supporting Fiber Optic Cable Singlemode Outdoor GYTC8S
Overhead Self Supporting 48 Core Fiber Optica Cable Singlemode Outdoor GYTC8S

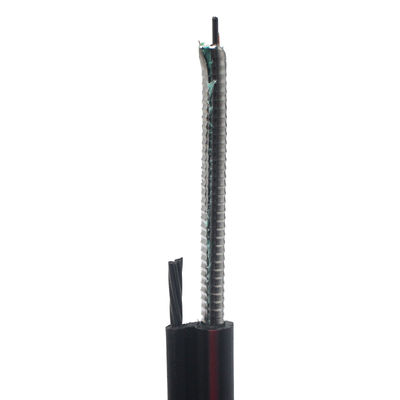

GYTC8S cable, singlemode/multimode fibers are positioned in the loose tubes, while
the loose tubestrand together around metallic central strength member into a compact
and circular cable core,and the water blocking materials are distributed into interstices
of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a
figure-8 structure.
Specification:
Item Name:Fiber optical cable GYTC8S.
Optical Mode:Singlemode/Multimode.
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.
Total Fiber Count:2-144.
Bend Radius(Static/Dynamic):10D/20D.
Working Life:More than 25 years.
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.
Structure:
- Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
- With good mechanical properties and temperature characteristics
- Material of loose tube has good hydrolysis resistance and high strength
- The loose tube is filled with special gel, which protect the optical fiber
- Take the following measures to ensure the waterproof performance of the optical cable
- Single metallic wire center reinforced core
- Filled with special Water-blocking material in loose tube
- Complete cable core filling
Moisture-proof layer of plastic-coated steel
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
| Fiber count | 48 core |
| Fiber Type: | G652D/G657A1/G657A2 |
| Crush Resistance Long term: | 300 (N/100MM) |
| Crush Resistance Short term: | 1000(N/100MM) |
| Overall Diameter | 11.4mm~13.10mm |
| Sheath | PE |
| Strand Steel wire | 7*0.8mm |
|
Sample Status |
In stock |
Product Details
FAQ
Q1:What are the advantages of your price?
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
